Lornet Elvira
Lornet provide the means for the detection of semiconductor elements through obstacles with high damping (eg, concrete) and in humid environments
Lornet Elvira
Lornet is equipped with an automatic system of protection against centered jamming by criterion of a minimum noise in the reciever path of the 2nd harmonic
Lornet Elvira

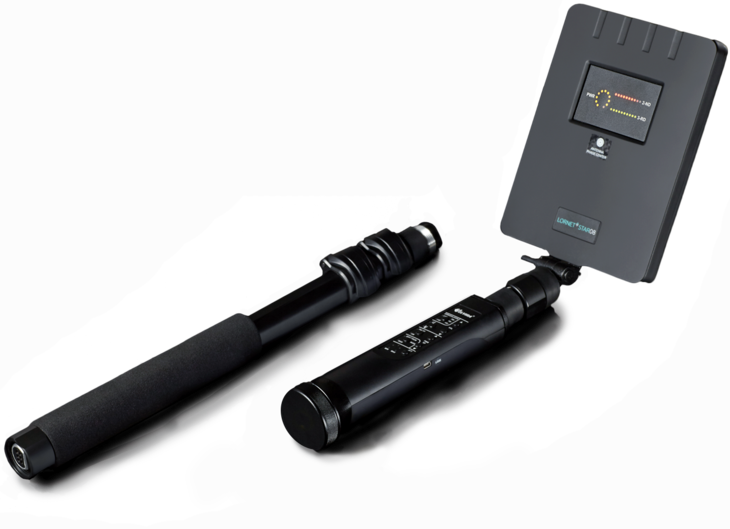

The telescopic handle and thin structure of the antenna unit (18mm) enable to operate in hard to reach places
Lornet Elvira

Application

Lornet Elvira

INDOOR USE

Lornet is suitable for indoors search operations

ANALYSIS OF THE NATURE OF SEMICONDUCTOR

For efficient identification of artificial and natural semiconductors a listening through a built in speakerphone or headphones can be used after AM decoding of the signal in continuous mode

WEIGHT

Record-breaking low weight in its class (1kg)

CONTROL

User friendly interface and unified push-button control. It does not require pre-setting before the start

INDICATION

Vivid and explicit indication of power levels of the signal and the received harmonic-waves

Lornet Elvira

Environmental Compliance

Electromagnetic radiation towards the operator is many times less than one setted by the Regulator

POWER CONTROL

Availability of automatic and manual control modes for the levels of the 2nd or 3rd harmonic of probing signal power increases the convenience of search works

HEADPHONES

The Use of wireless headphones makes the work with the device more comfortable

Reliable, simple to operate and inexpensive nonlinear detector in classical performance with the probing frequency of 900 MHz
Lornet Elvira

Supply package

  • R-T unit with a control knob
  • 2 removable (LI-ION) rechargeable batteries (3.6V)
  • Battery charging container
  • Battery charging adaptor (220V)
  • Wireless headset and receiver
  • AC adapter for the receiving device (220V)
  • Transportation bag
  • Documentation (user manual, certificate)

Technical characteristics

Probing signal frequency range 900MHz +/-
The maximum power of the probing signal (peak // average):
Pulse mode 10W//230mW
Pulse mode with small duty cycle (CW) 200mW
Receiver sensitivity, not worse than -110dBm
The adjustment range of the probing signal power 20dB
The dynamic range of the receiving path 24dB
Battery life at maximum power in a pulse (continuous) mode 3,0h
(1,5h)
Device size in operation (carrying) mode 102х16х6 (54х16х7)cm
The full weight of the item in active state 0.96kg
The bag dimensions 44х30х35cm
The full weight of the item within a bag 3kg
The operating temperature range from +5 to +40℃
Lornet Elvira
