LORNET STAR 36m

Modification of the non-linear LORNET 36 detector with accurate determination of the object's position in the area

Non-linear detector

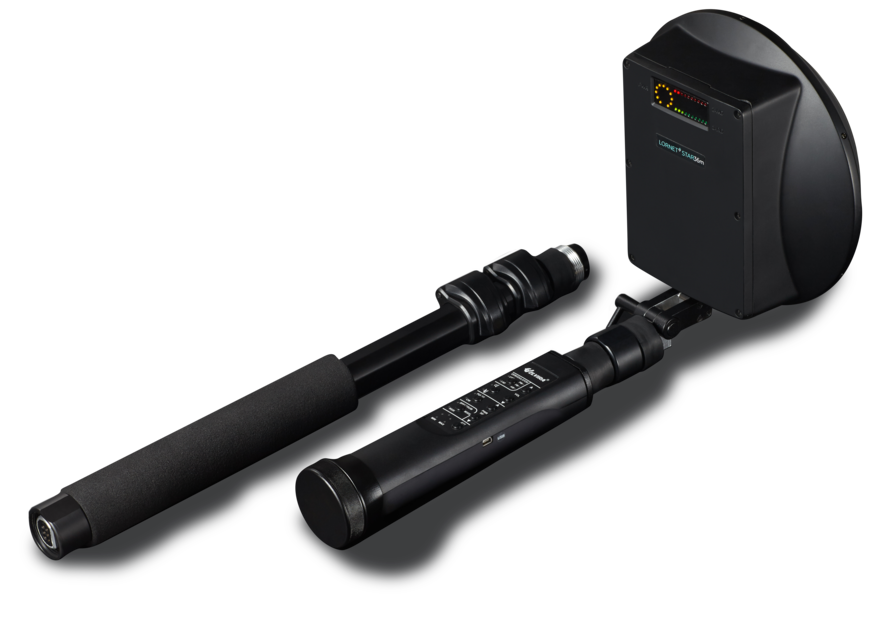

LORNET STAR 36m

  • Transmitter signal range 3600 MHz
  • Detection distance of metal striking elements up to 6 meters
  • Localization of the search object in space
  • Compatible with non-linear detectors of the LORNET STAR set

The device can search at a distance for any electronic devices (radio microphones, digital voice recorders, phones, SIM cards) and metal striking elements (screws, bolts, washers). Electronic devices can be either switched on or disconnected from the power supply

Remote detection

Remote detection

The antenna design and operating frequency of the device allow remote detection of electronic devices (including miniature ones, such as SIM cards) at a distance of up to 1 meter and metal striking elements at a distance of up to 6 meters

Accurate determination of the object's position in the area

Accurate determination of the detect object's position in the space

The device allows you to determine the position of an object in the area with maximum accuracy. This feature is realized due to a narrow beam of 16 degrees, which has a directional pattern of the transmitter antenna. The device is equipped with laser illumination, which indicates the exact position of the electronic device in the area

Convenience of search

Search convenience

The non-linear detector is equipped with laser illumination, which indicates the location of the detected object. The removable telescopic rod allows the operator to work in hard-to-reach areas

LORNET STAR set

LORNET STAR set

Any non-linear LORNET STAR detector can be equipped with one or two additional antenna modules with a different frequency range, using a common handle-control panel and a telescopic rod

Transport package

Standart: The set of the product LORNET STAR 36m is delivered in a special cloth bag-trunk with rigid walls that protect the device from damage

Export: In the export version, the product LORNET STAR 36m is delivered in a backpack-packing

Original transport packaging
Advanced transport packaging

Technical parameters

Transmitter

Bandwidth

3581.5 - 3607.5 MHz

Two types of radiated signal:

"Pulse" - Pulse modulation of the carrier frequency with a duty cycle:

160

technical.0835transmitter4

20

Maximum peak power of radiation in pulse mode (Pulse)

18 W

Maximum average radiation power in pulse mode (Pulse)

112 mW

Maximum continuous radiation power (CW)

6 W

Average power of radiation in pulse mode (CW)

300 mW

The range of manual power adjustment

22 dB

Width of the direction diagram

16 degree

Reciever

Frequency rate:

Second harmonic

7163 - 7215MHz

Third harmonic

10744.5 - 10822.5 MHz

Receiver sensitivity is not worse

-110 dBm

Dynamic range of the receiving tract (including the attenuator)

30 (10) dB

The amount of frequency channels when automatically selecting the receiving channel

3

Battery

Li-ion battery:

Voltage

12 V

Capacity

7.8 Ah

Continuous operation time at maximum power not less than:

In Pulse mode

2.5 h

In CW mode

1.5 h

Size and weight

The device size:

In working condition, without telescopic rod

47х20х14 cm

In fold condition, without telescopic rod

29х20х17 cm

Telescopic rod size in fold condition

43х4х4 cm

Size of the telescopic rod in the extended state

90х4х4 cm

Weight in working condition, without telescopic rod

1 kg

Telescopic rod weight

0.4 kg

The size of the bag

42х24х34 cm

Weight in transport package

5.0 kg

Export package dimensions

48х34х27 cm

Weight in export package

4.1 kg

Operating terms

Operating temperature range

from +5 to +40°С

Abilities

  • Detect electronic devices such as bugs, microphones, cameras, voice recorders, and phones that may be turned off, asleep, or on
  • Detection of small electronic components such as SIM cards and electronic components in shielded enclosures
  • Detection of explosive devices, electronic components and metal striking elements
  • Remote detection of electronic components and metal striking elements at a distance of up to 6 meters
  • Locating electronic components and metal striking elements in a 16 degree sector
  • Indication of the location of the target with laser illumination
  • Two types of radiated signals: pulse modulation of the carrier frequency in the pulse detection mode with a duty cycle of 160 and in the CW mode with a small duty cycle of 20, similar to the "20K" mode"
  • Recognition (identification) of electronic components from natural semiconductors (rust, metal-to-metal contacts, etc.) in CW mode, by listening to the signal from the output of the amplitude detector through the built-in speaker or headsets when receiving the 2nd and 3rd harmonics
  • The CW mode with pulse modulation of the carrier frequency with a small duty cycle can be used to detect working analog radio microphones due to the occurrence of acoustic feedback
  • Additional assessment of the 2nd and 3rd harmonic levels by ear based on the frequency of clicks played through the built-in speaker or wireless headphones
  • Automatic search for the frequency channel with the lowest level of interference for operation in a difficult electromagnetic situation
  • Automatic and manual power output adjustment
  • Manual adjustment of receiver sensitivity
  • Maximum detection efficiency for any electronic devices in the most difficult conditions when used with other replaceable antenna modules LORNET STAR
  • The presence of an additional battery with a charging time significantly less than the discharge time allows for round the clock operation of the device if necessary
  • The removable telescopic rod allows the operator to work in hard-to-reach areas

Equipment kit

  • Replacement antenna module "LORNET STAR 36m"
  • Handle-control panel with built-in battery container
  • Removable telescopic pole
  • 2 (two) replaceable (Li-ion) rechargeable batteries (12 V)
  • Charging unit for rechargeable battaries
  • 220V battery charger for rechargeable batteries
  • Headphone
  • Transport bag-stowage
  • Documentation (operator's manual, passport)

Application

  • Counterintelligence(TSCM)
  • Search in premises and offices for electronic devices that are also in the off state, such as hidden bugs, voice recorders, SIM cards, etc. including without radical removal of legal electronics
  • Antiterror
  • Detection of explosive device's electronics and metal striking elements in indoor and outdoor areas. Remote inspection of suspicious items, bags for the presence of electronics and metal damaging elements
